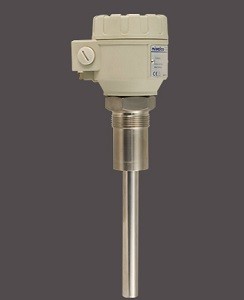

The NIVOCONT R series of vibrating rod level switches are robust instruments designed for low and high level indication of granules and powders with a minimum of 0.05 kg/dm3 (50 oz/ft3) density. Mounted on tanks, silos or hopper bins it can control filling / emptying, or give fail-safe alarm signals. The highly polished version is recommended to use for abrasive mediums. The operation principle is based on that the electronic circuit excites the vibration in the rod probe. When the medium reaches and covers the rod vibration stops, when the medium leaves the rod it returns to vibrate freely. The electronics senses the change of vibration and gives output signal after a selected delay.
Operating Principle:
VibrationFeatures:
- No moving parts
- Self-cleaning for most media
- Stainless steel vibrating section
- Solid rod or flexible cable extension up to 65 feet
- Plastic or aluminium housing
- Selectable density
- High or low fail-safe mode
- Selectable switching delay
- Dust-Ex models
Application:
- Almost any granular material and powder with min. 0.05 oz/ft3 bulk density
- Grain, flour, plastic granules, cement, fly ash, etc
Specification:
- Power supply: 20…255 V AC/DC
- Ambient temperature: -22 °F to +140 °F
- Medium temperature: -22 °F to +320 °F
- Pressure: max. 363 psig
- Process connection: 11/2”
- Output: relay (SPDT) or electronic switch (SPST)
- Protection:IP65, IP 67 (housing)
- Ex marking: ATEX 1/2 D tD A20/21 IP67 T*
