Product Overview

Leica DISTO™ The Original Laser Distance Meter
Leica DISTO™ D5 & Leica DISTO™ D8

Introducing the Leica DISTOTM D5 and D8 with the new Digital Pointfinder! This “camera” makes finding the target easily, even in glaring sunlight. Thanks to the additional combination of BLUETOOTH® and tilt measurement to 360°, the Leica DISTOTM D8 is the most sophisticated laser meter of its generation.

Leica DISTO™ D5

Outside viewing – no problem!

Range: 650 feet (200m)
Accuracy: ± 1.0 mm

  • Digital Pointfinder: with 4x zoom makes aiming much easier, even in glaring sunlight.
  • Easy to read: high resolution colour display
  • Integrated tilt sensor: for indirect measurement or horizontal distance.

Leica DISTO™ D8

Infinite combinations!

Range: 650 feet (200m)
Accuracy: ± 1.0 mm

  • Strong outdoor performer: with digital Pointfinder 4 x zoom, even in glaring sunlight.
  • BLUETOOTH®: Error-free data transfer with the “Leica DISTO™ Transfer” software.
  • 360° Tilt Sensor: for angle and distance measurements, including inclination.
Pouch
Wrist strap
2 batteries AAA 1.5 V
Manual
Producer certificate
Quick start manual
Pouch
Wrist strap
1 Target plate
2 batteries AA 1.5 V
Manual
Producer certificate

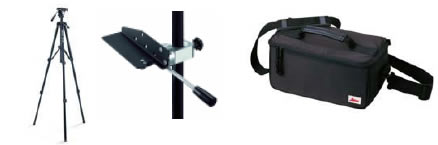

Optional: Target Plates, Adapter to use on set up poles, Soft BAg

Leica DISTO™ D5 & Leica DISTO™ D8 ideal for:

  • Appraiser - Real Estate - Flooring
    • Calculation of area: Get a room's surface area and perimeter with only 2 measurements.
    • Calculation of volume: With 3 measurements, calculate the surface of walls, floors, perimeter.
    • Stake out function Stake out function with audible signal for two different distances.
  • Electrician – Finish Carpenter - HVAC
    • Measurement of length: Calculate precisely any lengths
    • Calculation of volume: Calculate the room volumes.
    • Smart Horizontal Mode™:Measure at an inclination up to ± 45° and calculate the horizontal distance.
  • Carpenter - Kitchen Cabinet/Countertop - Estimating
    • Height measurement: Calculate distances using the Pythagoras functions.
    • Calculation of room corner: Adapt precisely your furniture calculating the angle of the walls
    • Tilt measurement: Determine the pitch of a roof or slopes up to ± 45°
  • Architect – As Built – Floor Plans
    • Calculation of surface: Measure the surfaces of rooms and receive the total surface, too.
    • Calculation of room corner: Measure the wall angles before realizing a plan.
    • Rapid, error free data transfer: Use the transferred results immediately in your PC.

Specific functions of Leica DISTO™ D8

Indirect tilt measurements
Now it is easy to determine for ex. the slope of a roof; and as additional information you receive the slope of the roof. Work from only one spot. We recommend the use of the Leica Tripod TRI 100 and the adaptor LSA 360.
Perfect for: Installation of solar panels, setting of frameworks, roofing, architect

Indirect vertical measurements
Determine the height of a facade, a window, a tree, a tower or a publicity display starting with only 2 measurements
Perfect for: Building surveyor, utility contractor, municipal engineer, firemen, landscape architect, carpenter.

Profile measurements
This function stands for analyzing the profile of a slope and altitude differences, in order to realize a cross-country
tread for landscape planning.
Perfect for: Landscape architect, mason, public work, surveyors.

BLUETOOTH® Technology
Perfect for: all public works, architect, designer, all survey work, painter, carpenter, etc.
