CURRENT CONTROLLED SWITCH
The UNICONT model PKK-312 is
the perfect industrial programmable setpoint current trip. Designed for
function, in a compact package - the PKK comes is suitable for mounting on a
DIN rail or a control panel.
For use as a setpoint switch, a
24 V DC power supply, an I. S. (intrinsically safe) power supply or a
combination; this versatile unit is the right choice for all your process
control requirements.
-
Low
Cost
-
Easy
to Install & Mount
-
Standard
DIN Rail
-
Plus
Screw thru Bracket
-
Rugged
& Maintenance Free
-
Programmable
-
Trip
point
-
Differential
-
Deadband
-
Time
delay
-
Input
current
-
EEx
ia version available
-
Power
relay output
|
|
To view or download
the Model
PKK-312 specification sheet (PDF file)
To view or download
the Model
PPK-231 specification sheet (PDF file)
right
click folder icon
 UNICONT PDF SERIES LOOP POWERED
METER
UNICONT PDF series is the universally scalable
process value indicator for current loops, most of them without the need for
power supply.
Depending on their installation there are two different types of them:
-
Plug-in display with connection according to the standard DIN 43650,
-
Field indicator for installation on wall or mounting plate
PLK-501 plug in display can be connected to the
2-wire transmitters with its DIN 43650 socket, such as NIPRESS pressure/level
gauge and MicroTREK radar level transmitter. The UNICONT PLK-501 has 4 digits
LED display and both ordinary and ATEX certified versions are available.
The
UNICONT PDF units are digital, field process indicators with 6 digit LCD display
as well as transmitters, converting analogue current to HART signal. They are
suitable for the use in hazardous areas in their ATEX certified EEx ia and EEx d
versions. Models with HART converter require power supply.
Process indicators find their use where besides displaying process value no
control function, such as switching ON/OFF pressure control, etc. is needed. For
application in hazardous areas Zener barrier or duly certified power
supply/isolator should be used.
|
ADVANTAGES
-
Process
Field Indicator
-
Two-Wire
Operation
-
4-20 mA
Input
-
HART Converter
-
4
or 6 Digit
Indication
-
Scalable LCD Display
-
Heavy Duty
Enclosure
-
ATEX Certified Versions
|
 |
To view or download the Model
PDF specification sheet (PDF file)
right
click folder icon
PD683 & PD688 Loop Leader Loop-powered indicators
|
Features
- 4-20 mA Input
- 5-Digit Display
- 0.6" (15.2 mm) LCD
- FM Type 4X, IP65 Front
- Shallow Depth Case 3.2" Behind Panel
- 2 V Drop (5.7 V with Backlight)
- Loop-Powered Backlight
- Custom Engineering Units
- Bargraph Display & Trend Arrow
- Maximum & Minimum Display
- Square Root, or Programmable Exponent
- Non-Volatile Memory - No Battery Needed
- Operating Temperature Range: -30 to 65°C
- Intrinsically Safe & Non-Incendive
- HART Protocol Transparent
 |
Introduction
The PD683 and PD688 are designed for demanding process control applications. Standard features include a full 5-digit backlit display with bargraph, on-screen custom engineering units, and max/min display capabilities. There are two models available: the PD683 is for general-purpose applications and the PD688 is for hazardous area applications.
Even with all the features packed into these meters, they're still easy to setup and get running. Everything is programmed from the front panel buttons with no pots or jumpers to deal with. In fact, these indicators can be scaled without a signal source for even quicker setup.
|
The PD683 and PD688 go just about anywhere with their shallow-depth case, FM Type 4X front, loop-powered backlighting, and wide operating temperature range. It doesn't matter if they're indoors or outdoors, in bright sunlight, or a dimly lit plant, wet, dirty, hot or cold. And the PD688, with its FM approval and CSA certification, can be installed in just about any hazardous area environment.
Square root and programmable exponent functions are standard features on the PD683 and PD688. With these features these indicators can display flow from a DP transmitter or open channel flow in weirs and flumes.
Install Just About Anywhere
Indoors, outdoors, bright sunlight, dimly lit plant, wet, dirty, hot or cold- these indicators go just about anywhere. Their shallow-depth case, FM Type 4X front, loop-powered backlighting, and wide operating temperature range are all standard features. And the PD688 with its FM Approval and CSA Certification can be installed in just about any hazardous location |

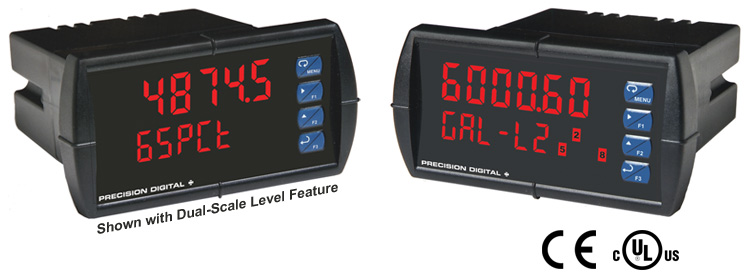

PD6000 ProVu Dual Line 6 Digit Process Meter
 |
- 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
- NEMA 4X, IP65 Front
- Universal 85-265 VAC or 12/24 VDC Input Power
- Large Dual-Line 6-Digit Display, 0.60" & 0.46"
- Dual-Scale for Level Applications – Single Input
- Sunlight Readable Display Models
- Isolated 24 VDC @ 200 mA Transmitter Power Supply
- Math Functions for Flow & Round Horizontal Tanks
|
- Programmable Displays & Function Keys
- 32-Point, Square Root, or Exponential Linearization
- Multi-Pump Alternation Control
- 2 or 4 Relays + Isolated 4-20 mA Output Options
- External 4-Relay & Digital I/O Expansion Modules
- RS-232, RS-485 Serial Communication Options
- Modbus® RTU Communication Protocol Standard
|
Feature Rich and Flexible
The ProVu® digital panel meter boasts specifications and functionality that clearly make it one of the most advanced process meters available. Its dual-line 6-digit display (999,999), advanced math functions, function keys, Modbus RTU serial communications, and optional expansion modules are only a few of the features found on the ProVu PD6000.
FRONT PANEL DISPLAY
Precise, Accurate, and More Informative
ProVu's large 0.6" upper display provides a highly accurate and precise 6-digit view of the process measurement. Its 24-bit A/D is accurate to ± 0.03% of calibrated span ±1 count.
Configurable
The upper display can be programmed to indicate PV, maximum (peak), minimum (valley), alternating maximum/minimum, one of eight alarm set points, or Modbus input. The lower display can also be configured to display engineering units, set points, user defined legends, or simply turned off.
Optional SunBright Display Models
ProVu's SunBright display models have an extraordinarily bright LED display. They are perfect for applications where the meter is in direct sunlight or in applications where visibility may be impaired by smoke, fog, dust, or distance. There are 8 user selectable intensity levels to choose from on all ProVu models. This option is available on all ProVu models.
|
HiTECH-CONNECT |
|
|
HiTECH's
HART compatible
RS-232 interface
(HC-232) and USB interface (HC-USB)
Its easy to talk to any HART instrument with a personal
computer and a HiTECH-CONNECT RS232 HART or USB HART Interface.
CLICK
HERE to VIEW the Data Sheet
|
|
